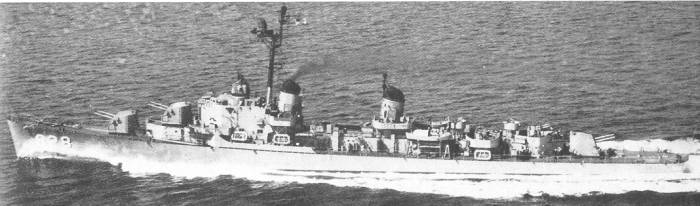

DD-710 Gearing class

Design History
The Gearing class was basically a stretched version of the Allen M. Sumner class. In an attempt to increase the speed and the range of the Sumners, a fourteen feet (4,27m) section was added amidships to improve fuel bunkerage. It also made for a more favorable length-beam-width ratio, essential for higher speeds. Without further modifications to the original design, the Gearing had higher range and barely higher speed.

Modification History
Similar to the Allen M. Sumner class.

Service History
Similar to the Allen M. Sumner class.


Ships in class:
DD-710 Gearing
DD-711 Eugene A. Greene
DD-712 Gyatt
DD-713 Kenneth D. Bailey
DD-714 William D. Rush
DD-715 William M. Wood
DD-716 Wiltsie
DD-717 Theodore E. Chandler
DD-718 Hamner
DD-719 Epperson
DD-741 Frank Knox
DD-743 Southerland
DD-763 William C. Lawe
DD-764 Lloyd Thomas
DD-765 Keppler
DD-782 Rowan
DD-783 Gurke
DD-784 McKean
DD-785 Henderson
DD-786 Richard B. Anderson
DD-787 James E. Kyes
DD-788 Hollister
DD-789 Eversole
DD-790 Shelton
DD-805 Chevalier
DD-806 Higbee
DD-807 Benner
DD-808 Dennis J. Buckley
DD-817 Corry
DD-818 New
DD-819 Holder
DD-820 Rich
DD-821 Johnston
DD-822 Robert H. McCard
DD-823 Samuel B. Roberts
DD-824 Basilone
DD-825 Carpenter
DD-826 Agerholm
DD-827 Robert A. Owens
DD-828 Timmerman
DD-829 Myles C. Fox
DD-830 Everett F. Larson
DD-831 Goodrich
DD-832 Hanson
DD-833 Herbert J. Thomas
DD-834 Turner
DD-835 Charles P. Cecil
DD-836 George K. Mackenzie
DD-837 Sarsfield
DD-838 Ernest G. Small
DD-839 Power
DD-840 Glennon
DD-841 Noa
DD-842 Fiske
DD-842 Warrington
DD-844 Perry
DD-845 Bausell
DD-846 Osbourn
DD-847 Robert L. Wilson
DD-848 Wilek
DD-849 Richard E. Kraus
DD-850 Joseph P. Kennedy Jr.
DD-851 Rupertus
DD-852 Leonard F. Mason
DD-853 Charles H. Roan
DD-858 Fred T. Berry
DD-859 Norris
DD-860 McCafferty
DD-861 Harwood
DD-862 Vogelgesang
DD-863 Steinaker
DD-864 Harold J Ellison
DD-865 Charles W. Ware
DD-866 Cone
DD-867 Stribling
DD-868 Brownson
DD-869 Arnold J. Isbell
DD-870 Fechteler
DD-871 Damato
DD-872 Forrest Royal
DD-873 Hawkins
DD-874 Duncan
DD-875 Henry W. Tucker
DD-876 Rodgers
DD-877 Perkins
DD-878 Vesole
DD-879 Leary
DD-880 Dyess
DD-881 Bordelon
DD-882 Furse
DD-883 Newman K. Perry
DD-884 Floyd B. Parks
DD-885 John R. Craig
DD-886 Orleck
DD-887 Brinkley
DD-888 Stickley
DD-889 O'Hare
DD-890 Meredith

Stats
Displacements:
Standard: 2,637 tons
Full: 3,340 tons
Length: 119,17m / 391ft
Beam: 12,43m / 40ft 10"
Draft (Full Load): 4,31m / 14ft 2 1/8"
Crew (Officers/Men): 11 / 325
Endurance: 4,380nm at 20 knots
Speed: 34,5 knots
Armor
Belt: No belt armor
Deck: No deck armor
Barbettes: No barbette armor
Conning Tower: No conning tower armor
Armament and Equipment
(As designed):
Main: 6 x 127mm L/38, in twin mounts: two forward, superfiring, one aft
Secondary: None
AA: 12 x 40mm L/56 in two quadruple and two twin mounts, 11 x 20mm L/70
Torpedoes: 10 533mm torpedo tubes in two quintuple centerline mounts
Depth Charges: 6 x K-Gun, 30 depth charges, 2 x depth charge track, 26 depth charges

(Kenneth D. Bailey, July 1945):
Main: 6 x 127mm L/38, as above
Secondary: None
AA: 16 x 40mm L/56 in three quadruple and two twin mounts, 20 x 20mm L/70 in twin mounts
Torpedoes: 5 533mm torpedo tubes in one quintuple centerline mount
Depth Charges: 6 x K-Gun, 2 x depth charge track
